The first time most people try to muscle a quad into a pickup bed, it ends badly. A 700 pound ATV does not care how motivated you are, and anyone who has watched one roll back off a pair of undersized ramps has already learned the lesson. Once you own the right ATV loading ramps, the same job takes under a minute with the machine’s engine doing the work.

We compared eight of the strongest sets on the market for best ATV ramps for loading trucks in 2026 — from folding aluminum pairs to a steel set rated past 2,000 pounds and a DIY lumber kit for anyone who wants to build their own. The Titan Ramps 7.5 foot pair earned our Editor’s Choice for carrying the deepest review history in the group, VENDAV’s 89 inch aluminum ramps took the highest rating, and Stalwart’s steel set carried the highest combined load rating in the group at 2,200 pounds.

What separates a good ramp from a bad one is rarely the price tag. It is length matched to your bed height, capacity matched to your machine’s wet weight, a traction surface that matches the ground you load on, and a strap system that stops the ramp walking backwards while the ATV is halfway up. We break all of that down below, including the safe loading angle, the failure modes that damage trucks, and a step-by-step procedure for loading alone.

Top 3 Picks for the Best ATV Ramps for Loading Trucks

Best ATV Ramps for Loading Trucks in 2026

All eight sets below cover the same core job, so the useful comparison is where each one gives way. Length, width, capacity, weight and fold type all matter differently depending on whether you load a sport quad into a standard-height truck or a side-by-side into a trailer.

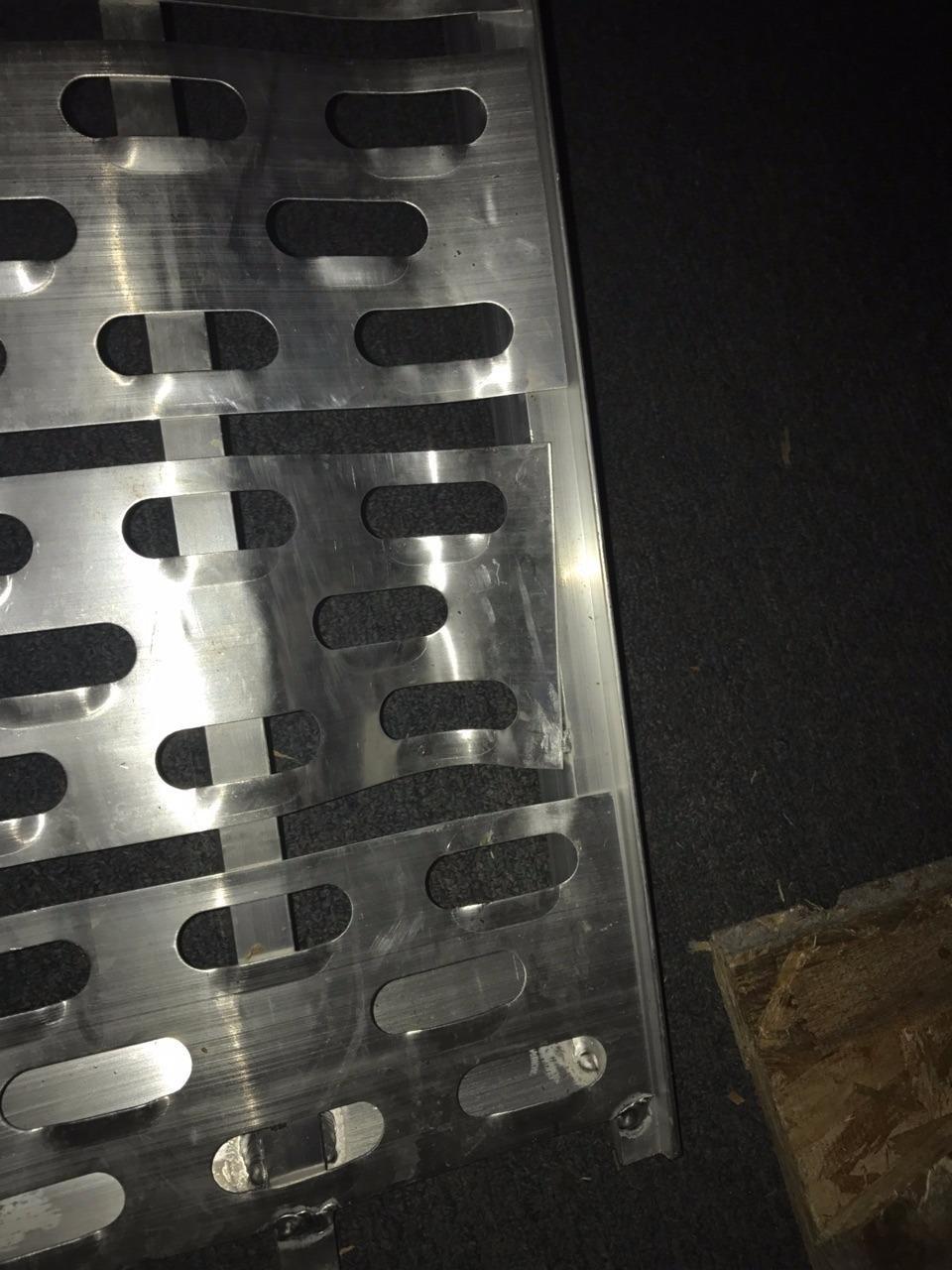

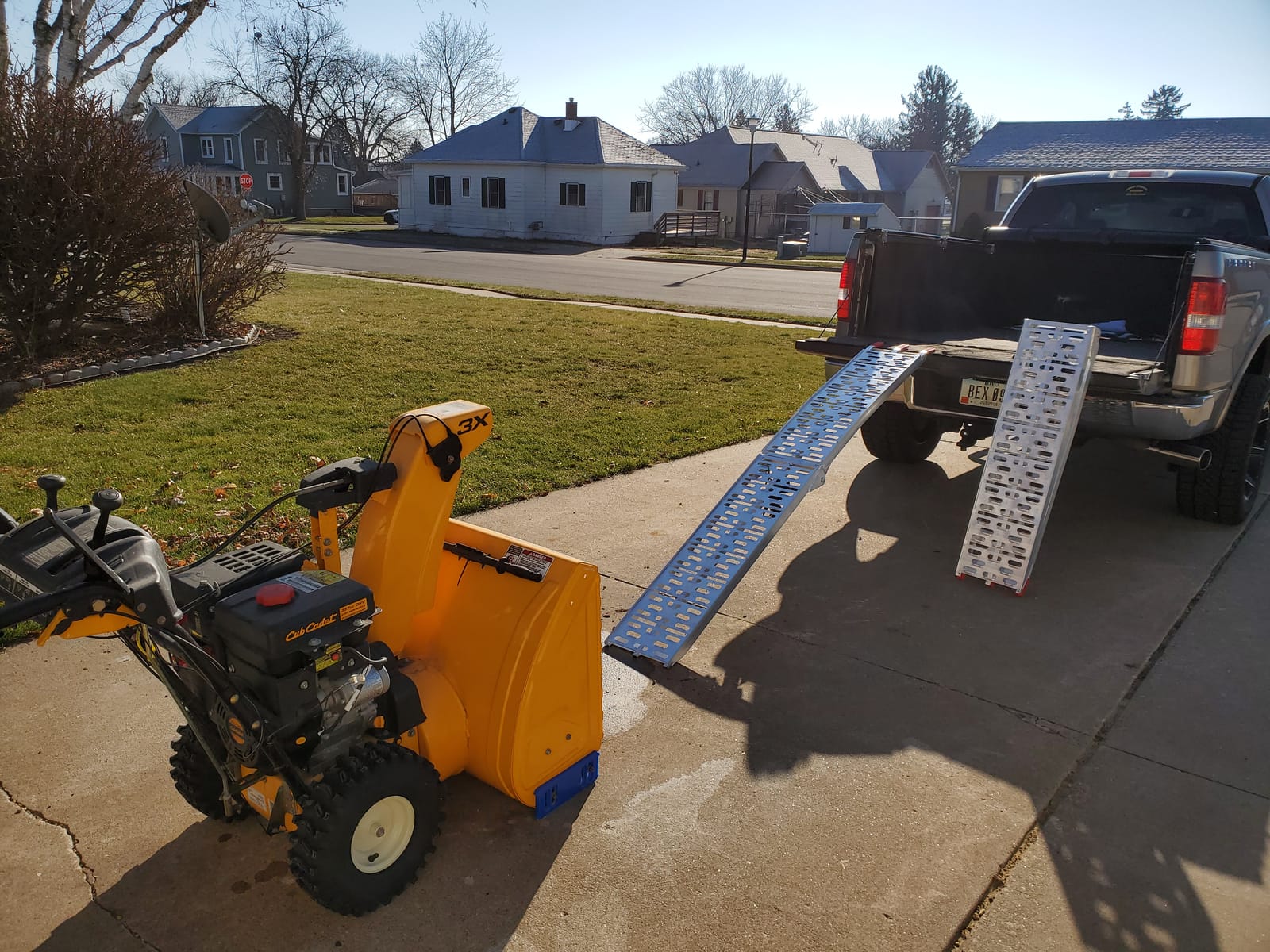

1. Titan Ramps 7.5 Foot ATV Loading Ramps – Best All-Round Pick

We have loaded more quads and riding mowers with this Titan pair than any other set, and the 91 inch arched aluminum design is the reason: the center rise carries the ATV’s skid plate over the ramp-to-tailgate transition instead of slamming into it. Each ramp weighs around 15 pounds, so one person can lift, position and re-seat a ramp without help, which matters because the moment a ramp needs repositioning mid-load is usually the moment a spotter is missing.

The solid plate surface with raised traction cutouts holds up in wet grass better than open rungs, and the rubber-tipped fingers at the truck end held secure across several different trucks for our own use. Owners also load this pair with riding mowers, golf carts and generators, which says the deck is stiff enough for small-tired wheeled equipment.

The honest weakness is the hardware in the box. The included straps are light duty and most owners swap in cam-lock or ratchet straps, and at full capacity the aluminum deck visibly flexes, which buyers planning weekly side-by-side loads read as a longevity signal.

Will 7.5 ft ramps clear a lifted truck bed?

Not comfortably. An unmodified or mildly leveled bed rail at 28 to 32 inches pairs well with 7 to 7.5 feet of ramp, and at 32 inches these 91 inch ramps produce a loading angle in the low-to-mid teens. Past about 36 inches of bed height the same pair pushes into the range where front tires lose traction and the skid plate starts to bottom out.

Is the 1,500 lb rating per ramp or per pair?

Per pair. Titan quotes 1,500 pounds total for the two ramps, and the listing itself notes that figure assumes evenly distributed weight, which is the one thing a four-wheeler never gives you. For a quad in the 700 to 900 pound class that leaves real margin. For a 1,100 pound utility machine, it does not.

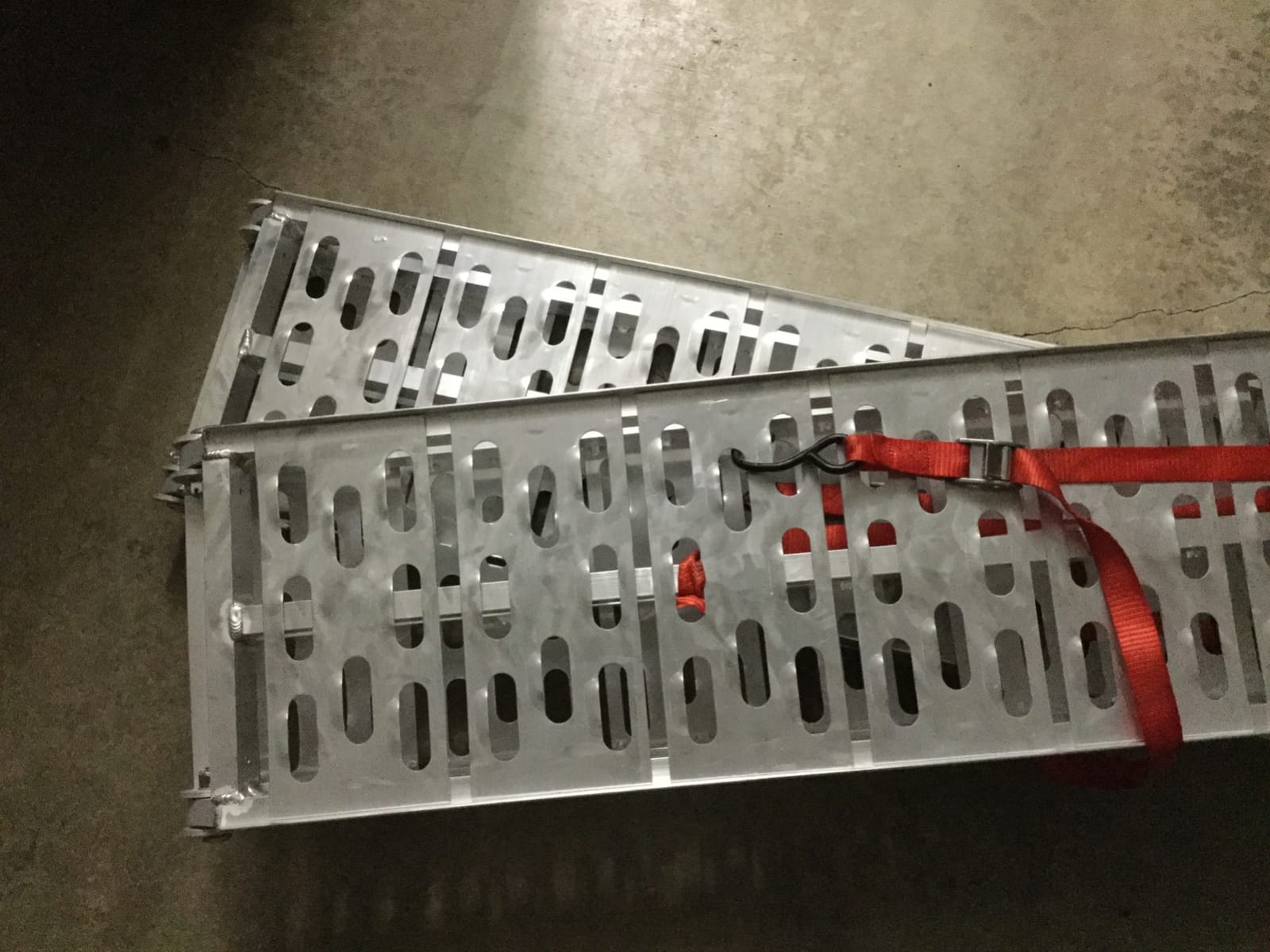

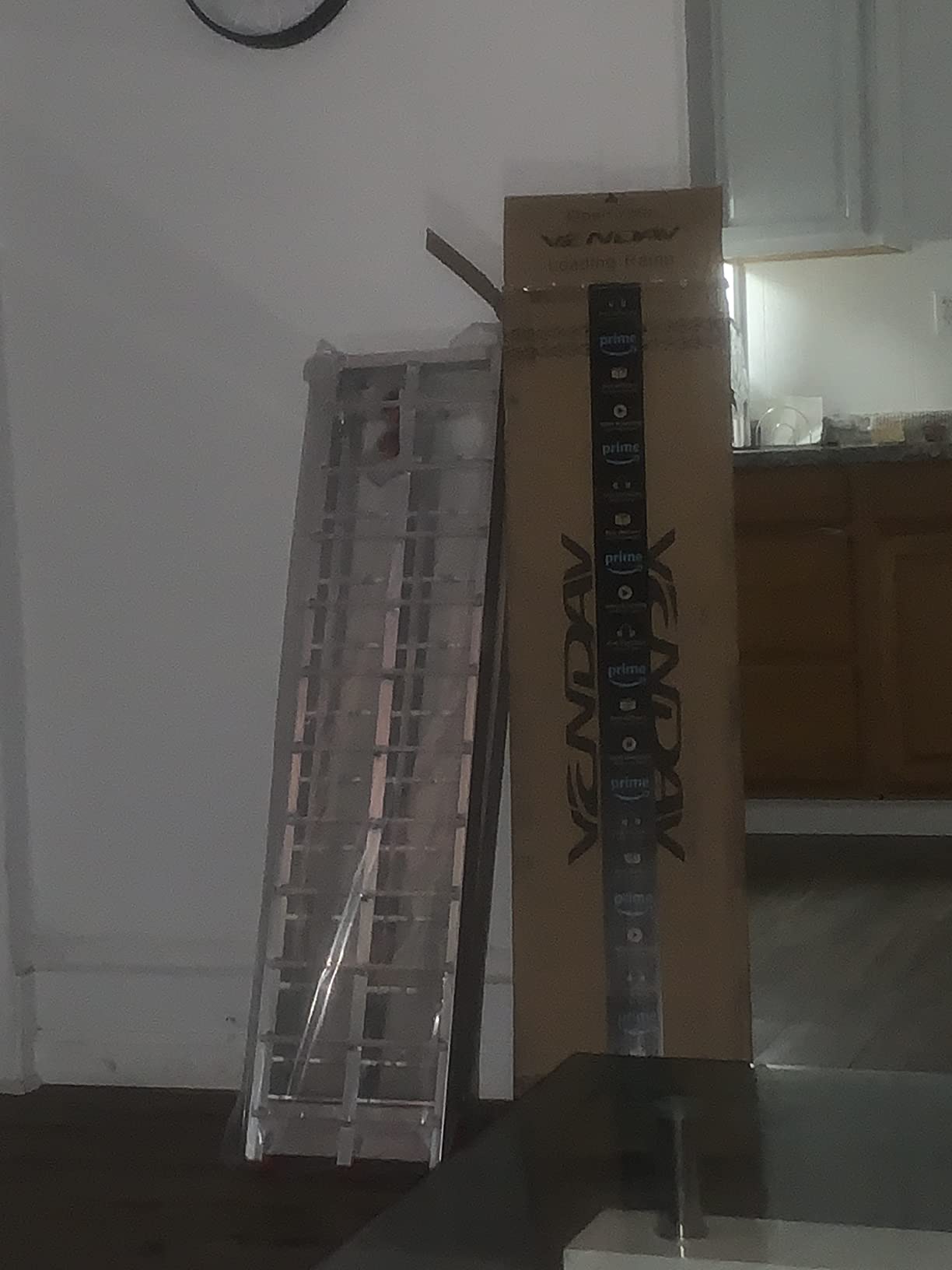

2. VENDAV 89 Inch Folding Aluminum Ramps – Highest Rated in the Group

At 4.7 stars across 488 reviews, this is the set our readers rate highest. In hand, the reason is straightforward: the extra two inches of length compared to most 7 foot aluminum ramps takes real effort out of the push, and buyers consistently describe climbing the incline as easy.

Capacity here is quoted unusually clearly for this category. The listing states 1,500 pounds per pair, 750 on each ramp when the load is split evenly, with roughly an 11 inch wheel path between the side rails and support for tire treads up to 10.5 inches wide.

Buyers compare this set favorably against heavier steel ramps, noting the lighter carry weight and the arch near the top that cuts required push force. Rubber-tipped upper fingers add grip at the contact area, and the included straps help keep the ramp planted.

The most common complaint is finishing. Multiple buyers report sharp points and unfinished edges that catch fingers or scratch a bed liner, a recurring complaint across imported aluminum in this category. Second, the open crossbar rungs leave gaps that can catch very small or narrow wheels, so this is not the ramp for a dirt bike on a narrow tire or a garden cart with tiny casters.

Is this set wide enough for a wide-track side-by-side?

For most quads and mid-size side-by-sides, yes. Each ramp is 12 inches wide with an 11 inch wheel path, and at 89 inches long the pair folds to roughly 44.5 inches for storage against a bed wall. For genuinely wide machines with a broad stance or a factory cage, step up to a full-width platform ramp instead.

What do I need to fix the sharp edges?

A file or deburring pad on the ramp’s outer seams and crossbar ends takes about ten minutes per ramp and removes the main complaint. Plan on a pair of real cam or ratchet straps rather than the supplied tie-downs, which owners describe as needing to be connected every single time or the ramp tabs creep on wet pavement.

3. TUFFIOM 7 Foot Aluminum Ramps – Best Welded Aluminum Option

The differentiator here is the welding. Owners call out the full-welded seams as smooth enough not to scratch hands, and in a category where sharp edges are the most common complaint across imported aluminum, that is a real upgrade in finish quality.

Each ramp carries an adjustable safety strap that anchors to a trailer hitch or bumper, giving you a second point of restraint beyond the finger hooks. Rubber-coated fingers grip the tailgate and, according to buyers, protect the paint at the same time. The pair folds flat and needs no assembly.

At 84 inches of ramp, this is half a foot shorter than the 7.5 foot sets in this roundup. On an unmodified bed that is still workable, and the arch in the side design keeps a 1,500 pound machine clear of bottoming out. On a leveled or lifted bed, the shorter run means a noticeably steeper angle and more front-tire spin.

How steep is the angle on a standard-height truck?

At 84 inches of ramp against a 30 inch bed rail, the incline lands near 20 degrees, the top of the comfortable window. Push the bed to 34 inches and the same ramp is around 24 degrees, where riders start reporting tirespin on wet ground and hesitant throttle inputs.

That is the trade: cleaner welds and better strap hardware in exchange for the shortest aluminum run here. Buyers who load on standard-height trucks and store the pair in the bed are well served. Buyers on lift kits should look at the longer 7.5 foot options.

Do the included straps actually hold a ramp in place?

They are positioned to anchor from the middle of the ramp to a hitch or bumper, and buyers who use them as designed report the ramp staying planted. A strap only works if it is connected every single time, and ramp walk is the number one reported failure mode across owner forums.

For solo loading, treat the strap as mandatory rather than optional and add a second cam strap if you load in wet or icy conditions.

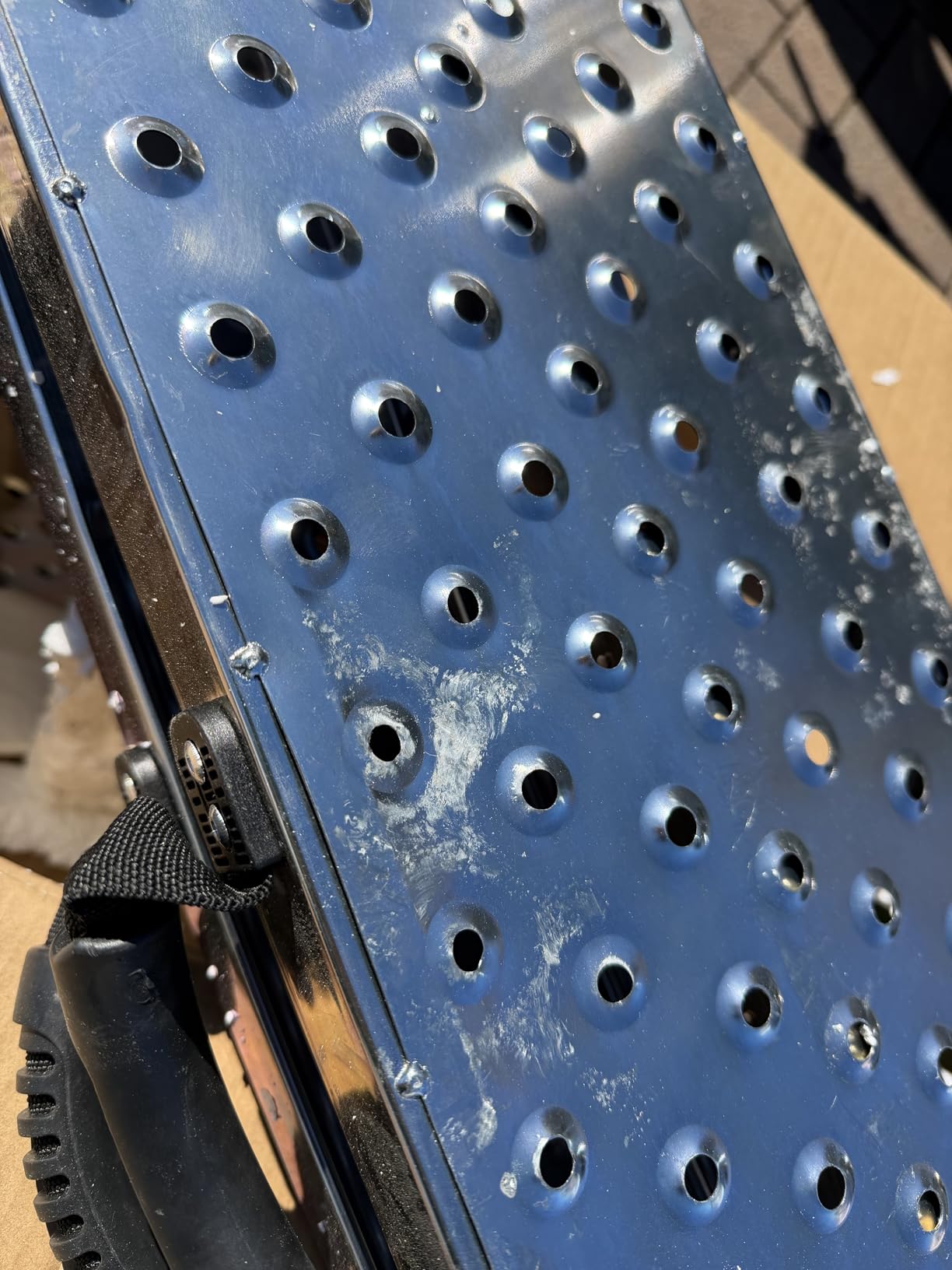

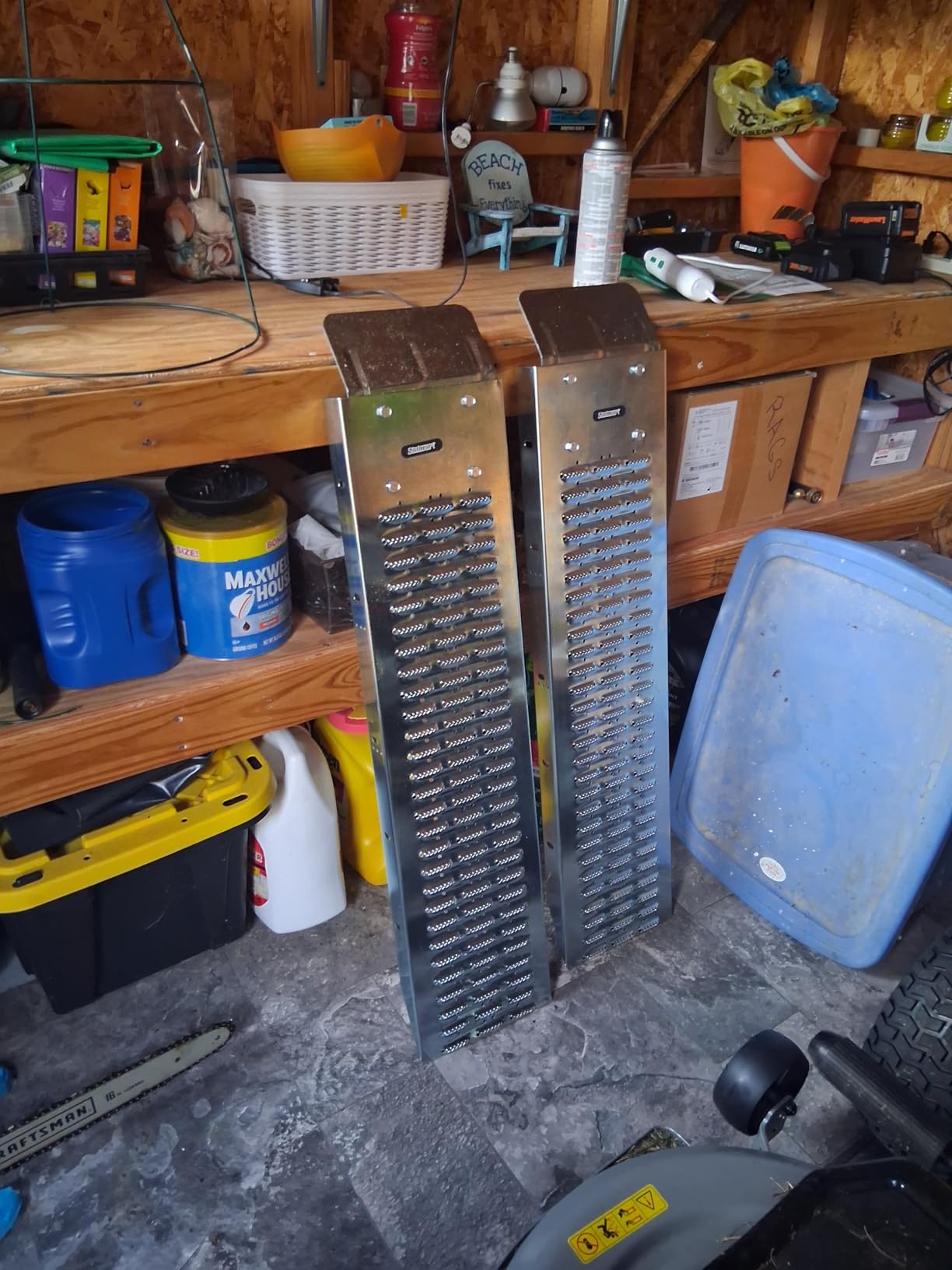

4. Stalwart 77 Inch Folding Steel Ramps – Best Value Heavy-Duty Set

If your machine is heavy and your budget is not, this zinc-coated alloy steel set carries the most load in the roundup at 2,200 pounds combined, or 1,100 per ramp. Owners put these to work on mowers, carts, golf equipment and ATVs, and the steel simply does not care about point loads the way thin aluminum does.

The PVC-coated rubber headboard is a genuinely smart feature. It creates a smooth transition onto and off the ramp surface, which softens the moment a tire leaves the steel deck and cuts the jolt that riding mowers and carts take at the top of the run. The fold-down design with a carry handle keeps the folded package to 43.3 inches.

The category ranking reflects genuine demand — this pair sits near the top of the powersports loading ramps chart with 940 reviews behind it. Buyers consistently cite the low cost and the high combined load rating as the reason to buy.

Be clear-eyed about the rating though. At 4.1 stars this is the lowest-rated set we tested, and a meaningful share of one-star reviews point to durability and fit issues. The 8.86 inch width leaves a tighter wheel path than 12 inch aluminum ramps, and at 77 inches with a stated 38 inch tailgate usage height, the length is the shortest of the folding pairs here.

Will 77 inch ramps work on a lifted truck?

No. The listing’s own figure puts usable tailgate height at 38 inches, and that assumes you are accepting a steep climb. On an unmodified bed around 30 inches the incline is manageable with a spotter. On a 40 inch lifted bed the same ramps reach close to 30 degrees, well past the point where front tires break loose and the ATV’s nose rises.

Is steel better than aluminum for loading an ATV?

Steel wins on raw strength and load rating, and it shrugs off the point loads a four-wheeler puts on a deck. Aluminum wins on weight: the steel pair is heavier to carry and store, which matters for a solo loader who has to reposition them mid-job. A compact tractor or a full-size riding mower puts far more concentrated weight on a narrow deck than an ATV does, and that is where steel earns its place.

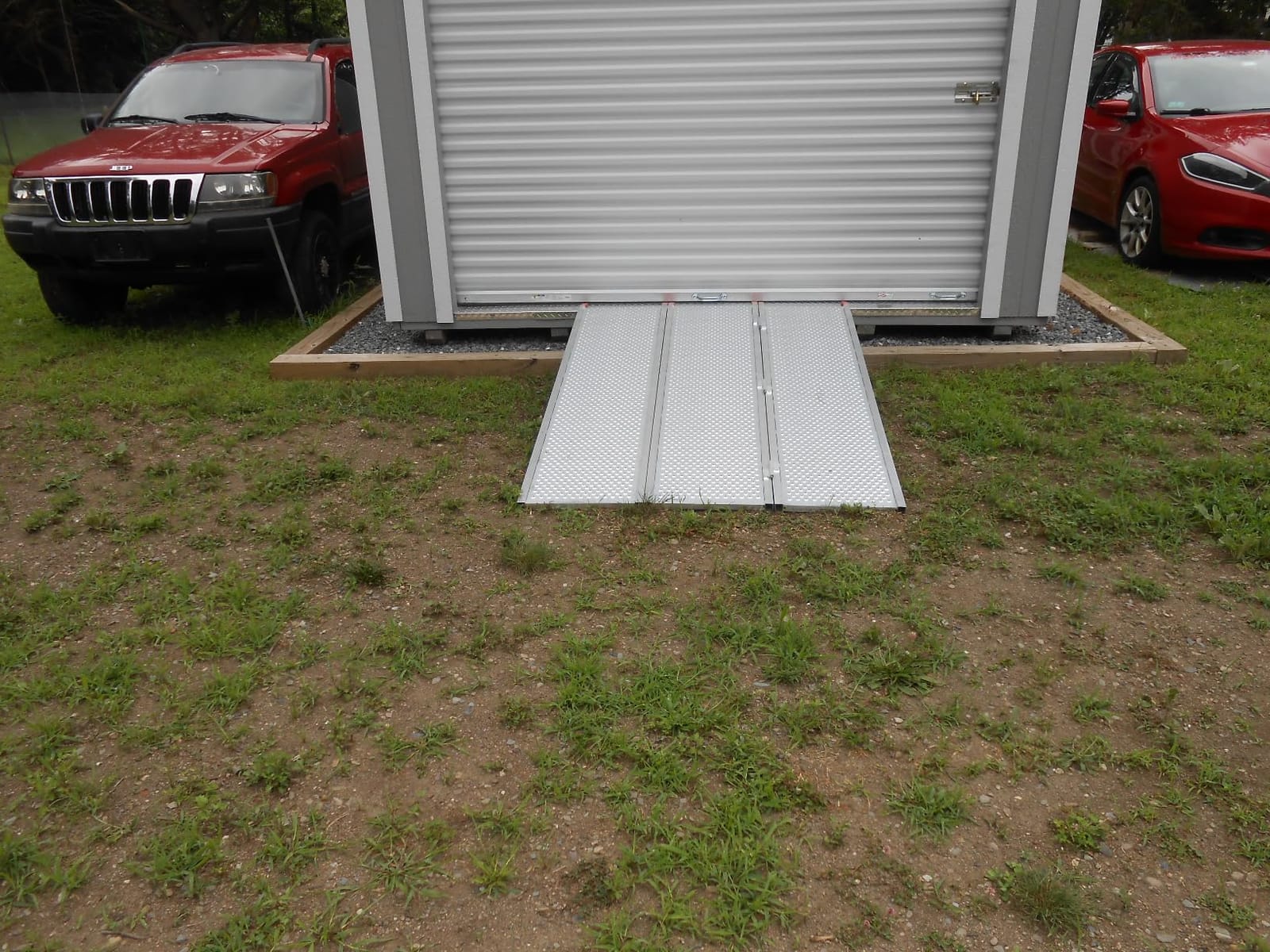

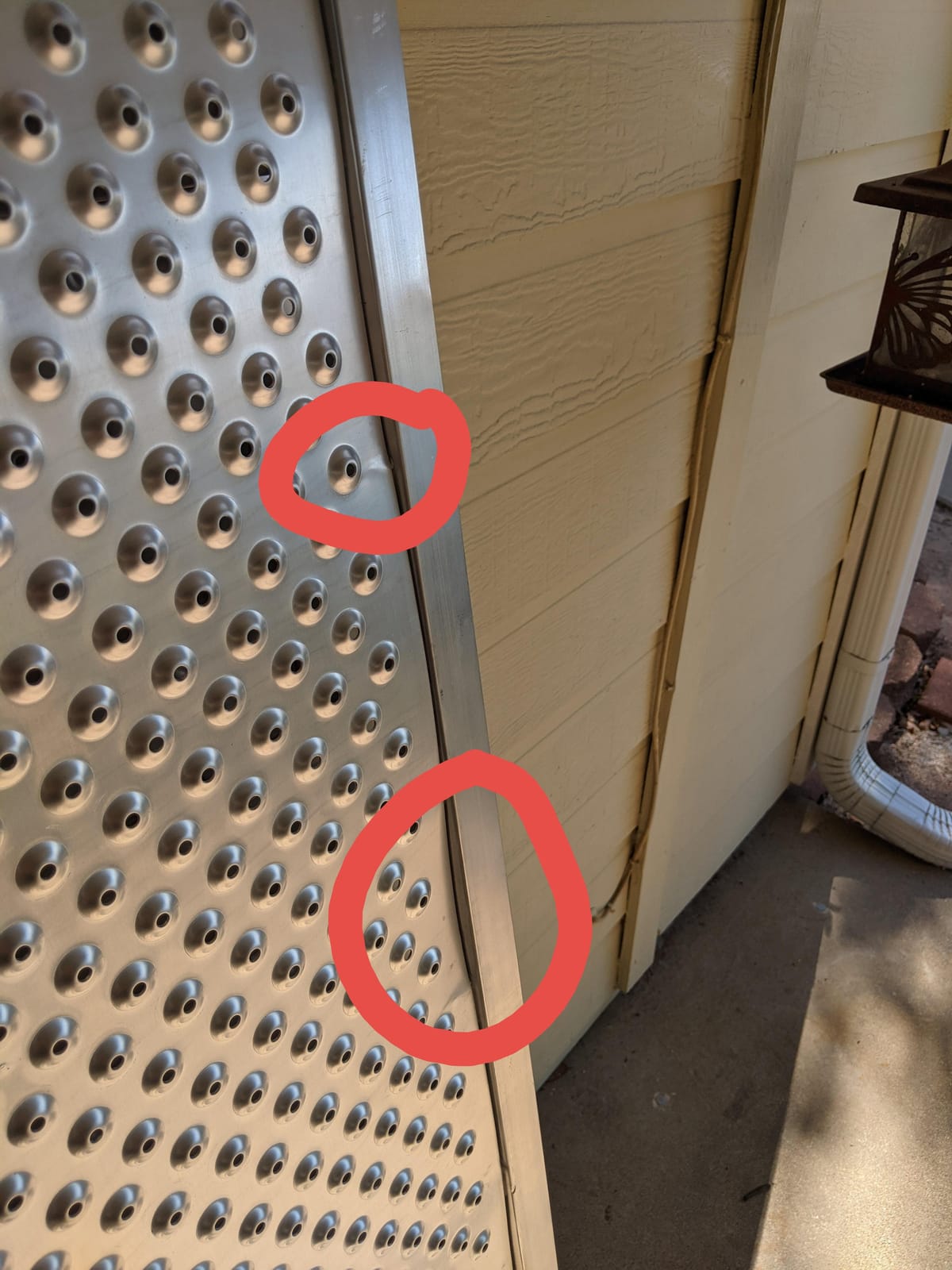

5. Black Widow Extra-Wide Tri-Fold Ramp – Best for Trailers and Wide UTVs

A 54 inch wide aluminum platform changes the geometry of loading. Instead of straddling two narrow rails, your tires roll onto a continuous deck, which means wide-track side-by-sides, caged UTVs and full-size utility machines sit square without you constantly adjusting ramp spacing.

Buyers who load full-size machines into trailers praise the wide solid deck and the punch plate traction, and the full-welded rustproof aluminum holds up outdoors through every season. The tri-fold hinge lets it collapse horizontally to a third of its unfolded length, so it lives flat in a truck bed or leans against a garage wall without eating floor space.

Maximum loading height is listed at 35 inches, with a minimum truck bed length of 7 feet, so it handles an unmodified or moderately leveled bed comfortably. The punch plate gives consistent grip for both tires and your footing while you walk a machine up.

The catch is weight and format. At roughly 52 pounds for the unit, this takes a deliberate two-person lift on most days, and the listing notes the same. It is also a single-ramp format, so loading both sides of a four-wheeler means bringing a matching second unit.

Do I need a second ramp for two-sided loading?

Yes. This is sold as one wide ramp, not a matched pair, and its main advantage — a continuous 54 inch platform — only works if you can drive a vehicle straight up the centerline of a trailer or up a wide single-ramp path. Anyone running a family of quads will find a paired set far more practical.

Is 35 inches of loading height enough for a lifted truck?

It handles unmodified and leveled beds, and it is marginal at the top of that range. A 4 to 6 inch lift kit pushes a bed rail past 35 inches on many trucks, at which point the platform no longer reaches the bed and you are back to a steep, awkward climb.

Platform width solves stability and traction, but only length solves angle, and angle is what determines whether the ATV’s front tires and skid plate clear the transition.

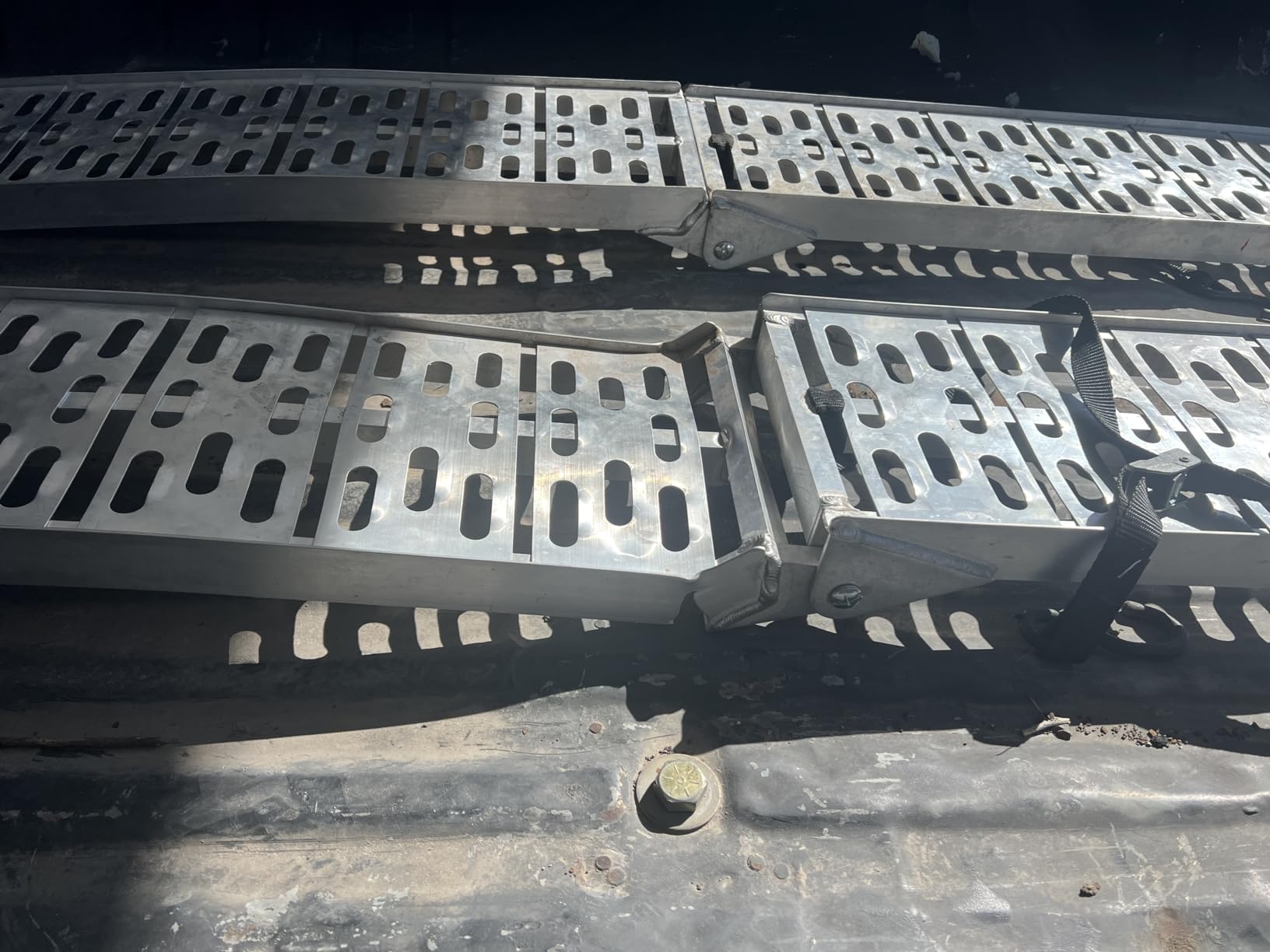

6. Black Widow 7 ft 5 in Folding ATV Ramps – Best for Riding Mowers

This is the set in the roundup that owners most often reach for when the other machine in the garage is a riding mower. The solid arched plate surface handles small-wheeled equipment that open crossbar designs cannot, and buyers report pushing a mower up the incline without heavy effort thanks to the 89 inch length.

At 32 pounds for the pair, it is light enough for one person to carry and set up, and the arch profile gives strong clearance so dirt bikes and quads do not bottom out mid-transition. Owners use these for riding mowers, snow blowers, e-bikes and quads such as the Can-Am Outlander, and Black Widow backs the set with a one year manufacturer warranty.

Fit is the dominant caution. The top fingers are engineered for roughly a 30 inch tailgate rise, and on lower beds they can creep if they are not firmly snugged. Buyers also describe the included tie straps as ineffective on lower truck beds, which pushes most owners toward cam straps, and on snow and ice the base of the ramp is reported as slippery.

Why do the fingers slip on a lower truck bed?

The fingers are sized for a specific rise height. When the ramp hooks over a shorter tailgate lip than it was designed for, there is less overlap between finger and bed, so leverage from a climbing ATV can creep the ramp outward. Adding a cam strap from the ramp body to a rated anchor point fixes this, and buyers describe that brace as the difference between a smooth load and a nervous one. The rubber coating still reduces scratching, so the finish is not the problem. The fit is.

Can I use this pair in winter conditions?

With caution. Buyers report that the base slides on snow and icy pavement, which is a traction problem at the ground end rather than the tailgate. Any solid plate ramp turns slick when ice forms, so clear the landing area, lay down grit, and use far more throttle modulation than you would on dry concrete. If winter loading is your primary use, a crossbar design sheds slush better than a solid plate.

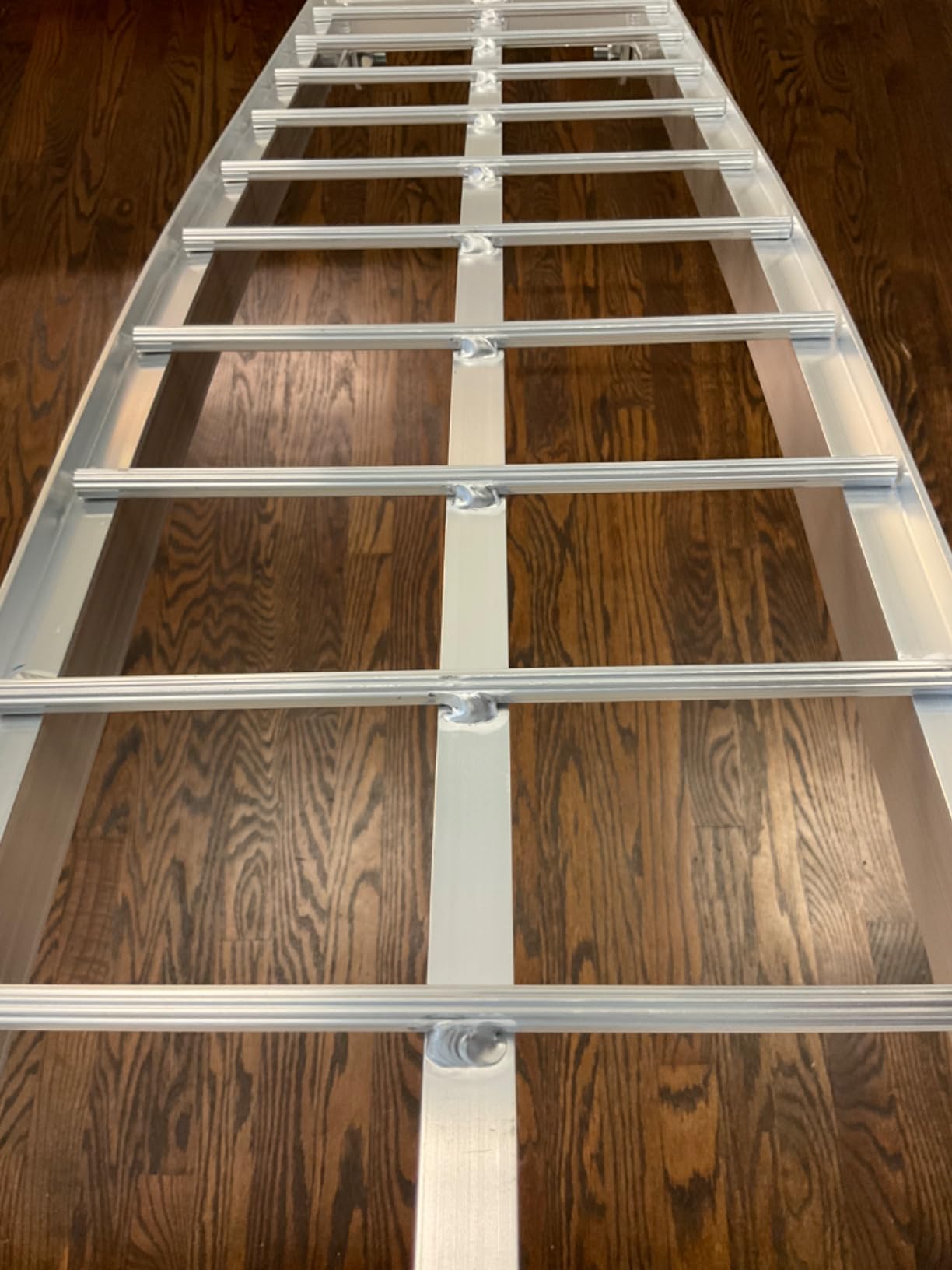

7. KROAK 7.5 ft 1800 lb Aluminum Ramps – Best for Heavy Machines

The headline number here is 1,800 pounds total, the highest stated pair capacity among the folding aluminum sets in this roundup. That margin is what makes this the option for anyone hauling a heavy utility ATV, a mid-size side-by-side or a compact tractor alongside their quad.

Construction is 2 inch thick full-welded aluminum with a 23-grid crossbar pattern designed to spread load evenly rather than concentrate it at a few points. Owners single out the welded build and the smooth, sharp-edge-free surface as the quality signals.

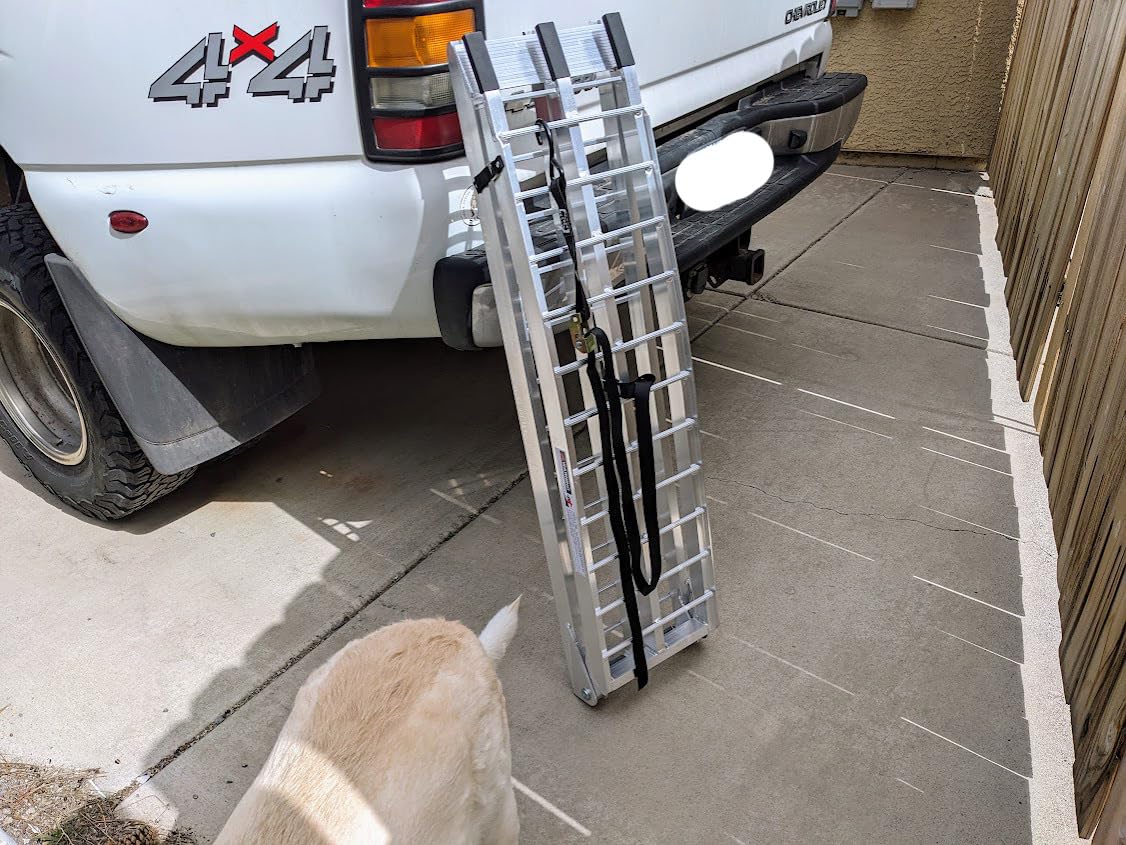

Stability is handled with rubber-tipped anti-tip ends plus adjustable safety straps that lock the ramps to the vehicle. The one-second fold collapses each ramp to 45.8 inches for simple storage, and the 90 by 12 inch surface supports tires up to 34.5 inch loading heights. The most common notes are practical rather than structural: the pair is heavier than buyers expect at roughly 33 pounds, and the grid pattern suits vehicle tires much better than very small wheels.

How much heavier can this pair carry than a 1,500 lb set?

Roughly 20 percent more on paper, 1,800 pounds against 1,500. Run the arithmetic the way we do in the buying guide: take your machine’s wet weight, add the rider and gear, and multiply by 1.5. A 900 pound loaded ATV lands near a 1,350 pound target, well inside a 1,500 pound pair, so the extra headroom only matters when you are moving a loaded side-by-side, a compact tractor or a heavy zero-turn mower.

Will the crossbar pattern work for a mower or a cart?

For standard mower and cart tires, yes. The 23-grid pattern gives multiple contact points per inch of travel, which is what keeps a loaded machine from skating. The pattern is a poor match for very small narrow wheels such as some garden cart casters or a small pressure washer dolly, where a tire can drop between bars.

If you move small wheeled equipment regularly, a solid plate ramp is the better surface, even if it is heavier.

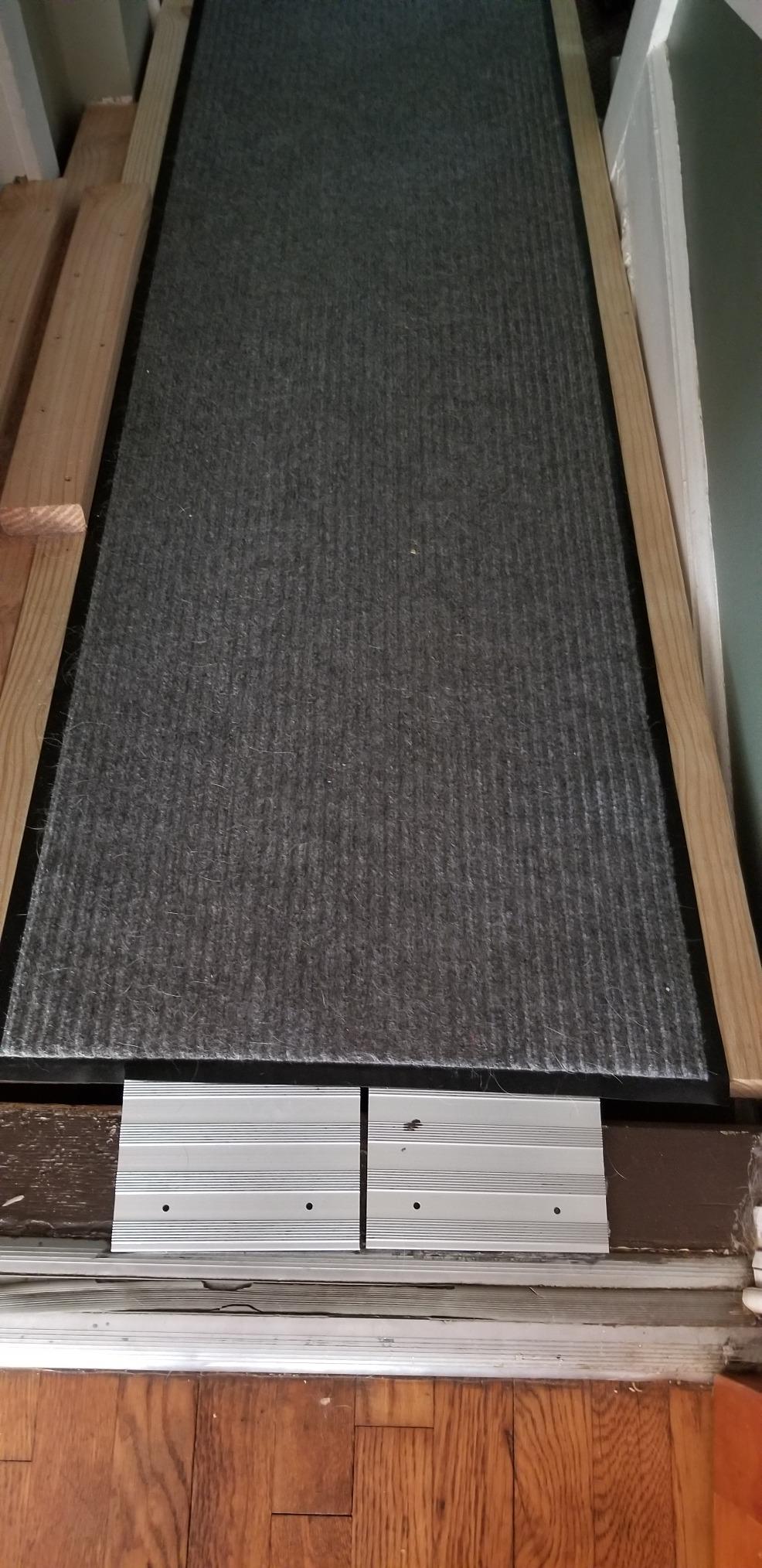

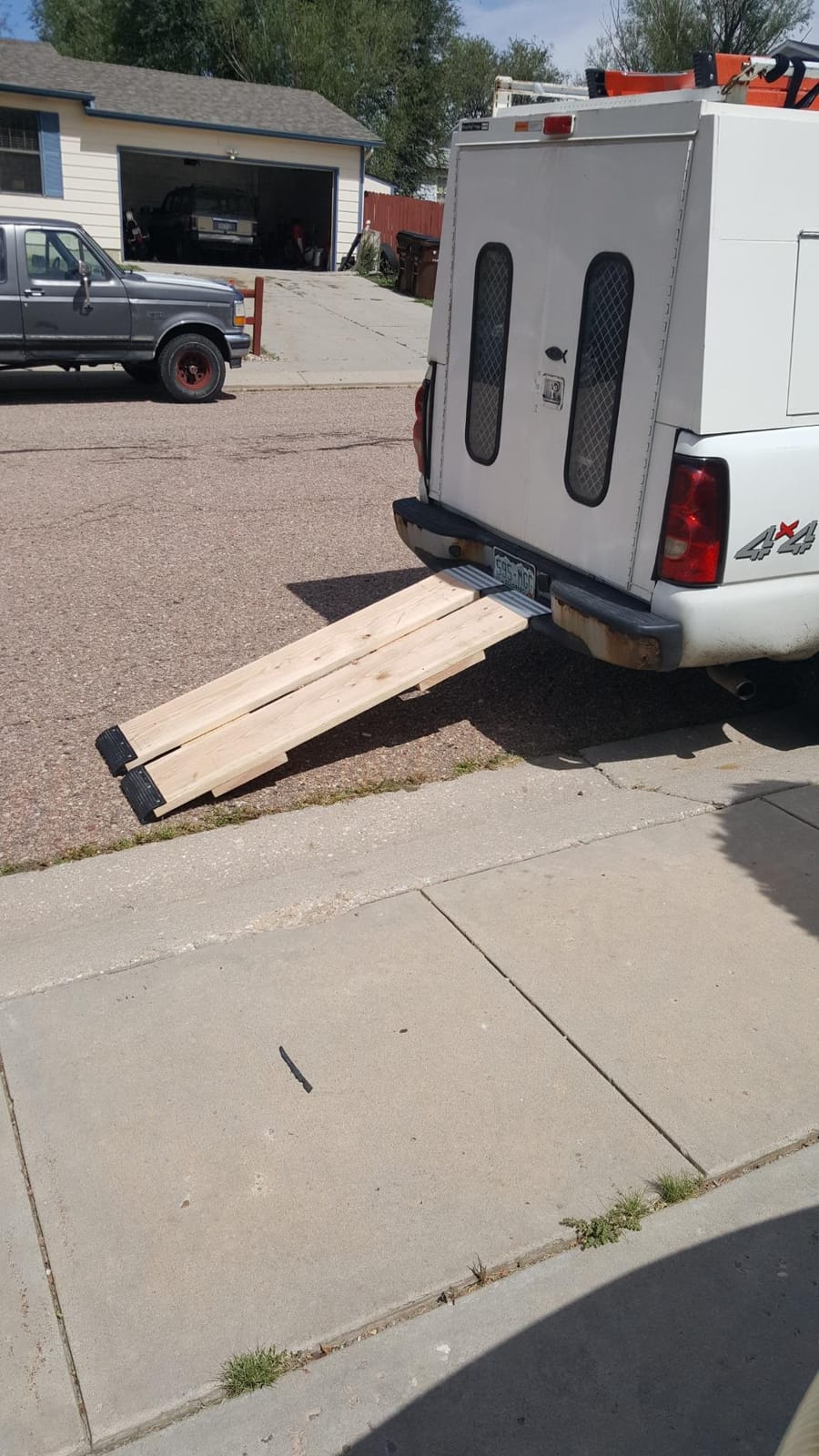

8. AFA Tooling Aluminum Ramp Kit – Best Budget DIY Build

This is not a finished ramp, it is the hardware that turns two boards into one. The kit supplies thick machined aluminum brackets with grip lines, strong bolts and grooved rubber anti-slip feet, and you supply two 12 foot lengths of 2 x 12 lumber.

That flexibility is the whole point. Every other set on this list forces you to accept a fixed length, and fixed length is the single variable that decides whether your loading angle is comfortable or dangerous. Ratings sit at 4.6 across 880 reviews, and buyers point to the sturdy brackets, the rubber feet and the fact that a 7.7 pound kit is trivial for one person to deploy.

The planning matters more than the parts. Buyers who picked softer lumber had to shave the board ends to make the kit fit, softwood and treated pine are not recommended for heavier machinery, and a wood surface will wear and can turn slick over time next to an aluminum plate ramp.

How much wood do I need and what kind?

Two 12 foot lengths of 2 x 12 oak hardwood is the intended build, and each bracket holds 750 pounds, or 1,500 paired. The catch is thickness: oak boards labeled 2 x 12 actually measure around 1.37 inches, and the brackets are machined to that dimension. The rubber feet and brackets do the structural work, but the board takes the bending load, so a softer board deflects more under a rolling ATV.

Is a DIY lumber ramp as safe as a factory set?

It can be, provided you build it to length and brace it well. A ramp cut to 10 feet gives a gentler angle than any 7.5 foot factory set, and the rubber feet keep the ground end from sliding on hard surfaces. What you give up is the factory surface finish, the arched center profile that protects a skid plate, and the tested load rating.

We would not use a wood surface on ice or wet snow, where an aluminum deck with a traction pattern is far safer.

Ramp Length by Truck Bed Height

Ramp length is the one specification you cannot compromise on, because it sets the loading angle. The safe window is 12 to 20 degrees. Past about 25 degrees the front tires break loose, the ATV’s nose rises, and the skid plate or front bumper starts to strike the ramp-to-bed transition.

A useful rule of thumb from experienced riders: every inch of lift needs roughly two inches of additional ramp length. That is why the same 7.5 foot set that feels effortless on an unmodified truck becomes a chore on a lifted one.

Measure your tailgate lip, not the overall truck height, and add a few inches if the tailgate stays down. With the tailgate dropped, the ramps bridge down to the tailgate panel and you get extra run; with it up, you are climbing to the bed rail itself and losing several inches of usable length.

As a rough guide, a standard-height bed rail at 28 to 32 inches wants 7 to 7.5 feet, a leveled bed at 30 to 34 inches wants around 8 feet, and a lifted bed at 36 to 42 inches needs 9 to 10 feet. The 77 inch steel pair in this roundup already sits at the low end of what a quad needs.

Weight Capacity and Material: Aluminum vs Steel

Capacity numbers confuse buyers because some manufacturers quote per ramp and some quote per pair. Read the wording carefully: a set rated at 1,500 pounds per pair with 750 per ramp is a different machine from one rated at 750 pounds per ramp.

Here is the arithmetic we use. Take the ATV’s wet weight, add the rider and gear, then multiply the total by 1.5. A 750 pound wet-weight quad with a 180 pound rider and 40 pounds of gear comes to 970 pounds, so a sensible target is roughly 1,455 pounds of rated capacity — which is why nearly every quality set in this roundup lands at 1,500 pounds. Larger machines need to clear the same math with more headroom, which is what the 1,800 pound aluminum pair and the 2,200 pound steel set are for.

On material, aluminum is the practical default for ATVs. It weighs far less than steel for the same job, so one person can reposition a ramp mid-load, and it does not rust in a wet truck bed. Steel wins on raw strength, tolerates point loads from heavy equipment, and suits a compact tractor or full-size riding mower better than aluminum.

What to avoid: 60 to 70 inch ramps for a lifted truck, plastic ramps for any ATV over roughly 700 pounds, and any set you plan to use without connecting the straps.

Common Failure Modes and How to Prevent Them

Ramp walk is the number one problem, described the same way by owners on every powersports forum we read. The ATV’s weight and drive force push the ramp backwards off the tailgate lip, and a half-loaded quad ends up back on the ground or down hard on a flexed tailgate. Prevention is mechanical: connect a strap from the ramp to a rated anchor on the vehicle before the first tire moves, and treat a rubber-coated or hooked finger as a backup rather than the primary restraint.

Bottoming out happens at the transition where ramp meets bed, and it is a geometry problem. A straight ramp forces the skid plate to jump the lip; an arched ramp with a 1.5 to 2.5 inch center rise carries the machine over it.

Flex fatigue shows up as visible deck give under load. A flexing aluminum ramp is not immediately dangerous, but permanent set is a sign you are running close to the rating.

Sharp edges are the most common finish complaint in this category, and they nick hands, bed liners and paint. Deburring the seams and crossbar ends takes minutes.

Traction and rung spacing matter more than most buyers expect. Open crossbars shed mud and slush but can snag very small wheels, while solid plate and punch plate grip small tires and your footing better yet turn dangerous the moment ice forms on them.

How to Load an ATV Into a Truck Bed Safely

No ramp brand or ranking makes up for bad technique. This is the sequence we use every time.

1. Work on firm, level ground. Set the truck on flat packed dirt or concrete, not on soft grass where the ramp foot sinks and the angle changes mid-climb.

2. Position the ramps before anything else. Square both ramps to the truck, match the gap between them to your machine’s wheel track, and confirm the ramps are parallel rather than splayed.

3. Connect the straps. Attach each strap to a rated anchor on the vehicle — a hitch, a bumper, or a bed-mounted tie-down. Ramp walk happens when a rider treats straps as backup hardware.

4. Clear the transition. Make sure nothing sits on the bed lip between the ramp and the bed floor. A strap tail, a blanket or a clump of snow at exactly that point is what turns a clean load into a bottomed-out skid plate.

5. Walk it up, do not ride it up, on the first attempt. Start in first gear at idle, use the brakes to control speed, and let the engine do the climbing. Riding up with the throttle open is how ATVs get airborne at the top.

6. Modulate the throttle through the steepest point. The hardest part is usually the last third where the wheelbase goes vertical. Ease off, let the machine settle, then add a little throttle again. If the front tires spin, you are too steep or too fast, not underpowered.

7. Stop with the machine fully in the bed. An ATV stopped halfway up is a tipping risk every time someone walks past it.

Loading alone is workable. Without a spotter, walk the machine up on the first load so you can see the transition yourself, keep your hands on the controls, and never stand downhill of the ramp.

Same thinking applies to the rest of a mobile work setup. Our guide to grills for food trucks applies the same weight, fit and durability thinking to a different kind of trailer load.

Frequently Asked Questions

Final Verdict: Which Ramp for Which Truck

The Titan Ramps 7.5 foot pair is our pick for the best ATV ramps for loading trucks because the 91 inch arched aluminum design solves bottoming out, each ramp carries about 15 pounds so one person can manage them, and the review history behind them is the deepest in the group. For the highest rated set, VENDAV’s 89 inch pair takes it with a 4.7 average and a clearly stated 750 pounds per ramp.

Buy the Stalwart steel set if you move heavy equipment and want the highest capacity, the KROAK 1800 pound pair if your loaded machine is on the heavier side, and the Black Widow extra-wide tri-fold only if a single wide platform suits your trailer. Lifted truck owners need 9 or 10 feet of ramp, and anyone loading alone should strap up before the first tire moves.
